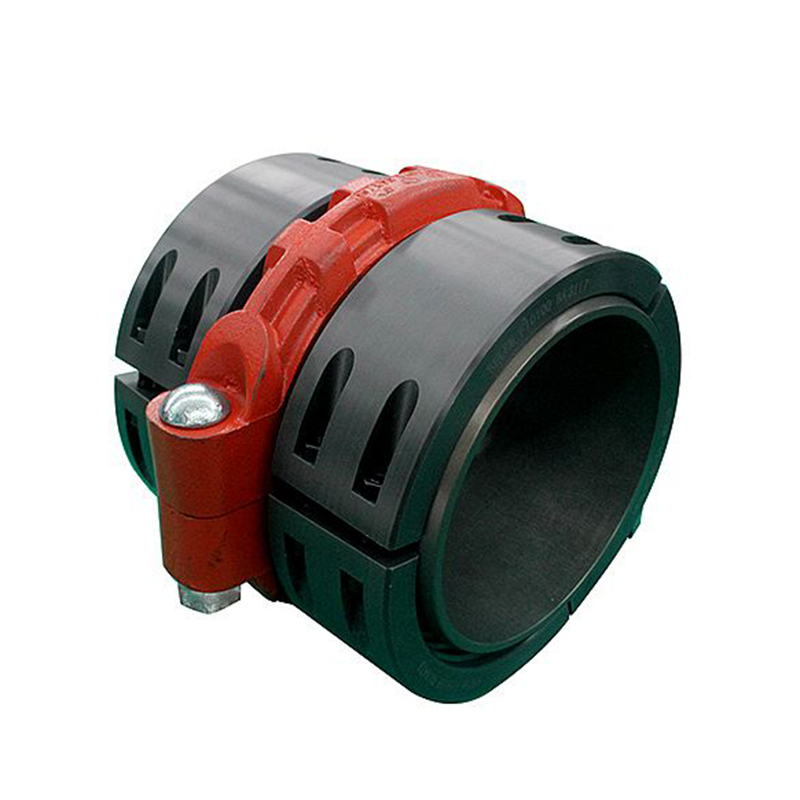

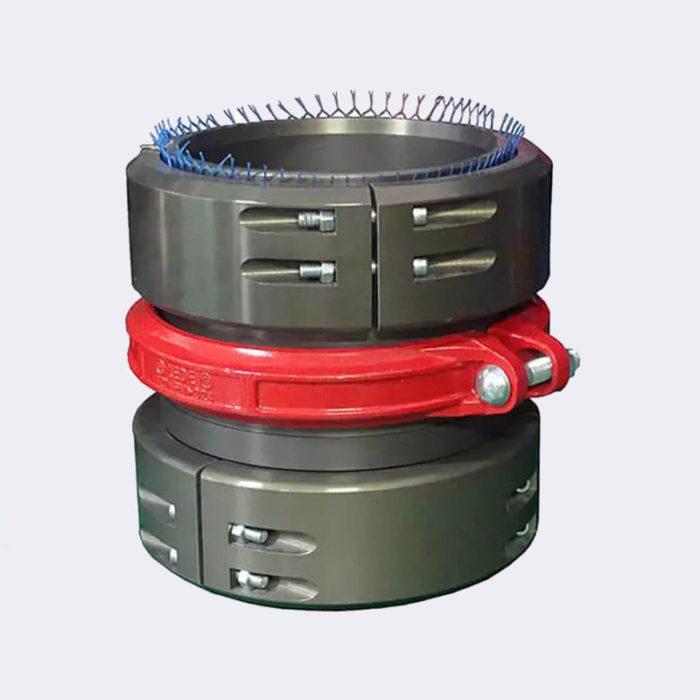

Victaulic Coupling

V-Style forged couplings set contains two sets of specially designed clamps, which can ensure the very quick connections of the two hose sections. Also, clamps are the re-attachable and compatible ones with special designs that are developed by experienced hoses fitting engineers.

Details about Victaulic Coupling

Victaulic type hose coupling sizes available: 8″, 10″, 12″

Engineered For Demanding Industrial Pumping Applications

Hoses Connect With “V” Groove Style Victaulic Or Other Commercially Available Pipe Clamps.

  • Superior to Crimp Style hose Fittings
    The hose is secured to Hose Shank With Bolted Collar Sections.
  • Maximum Pressure and Tensile Load Performance
    For PVC/Nitrile Rubber or TPU Hose.
  • High Strength Aluminum
    Machined from Aluminum Alloy 6061-T6
  • Corrosion Resistant Finish
    Anodized per Mil-A-S6625, Type III, Class 1.
  • Collar Bolts: Socket Head Cap Screws
    SCM435 Alloy Steel, Hardness 42HRC.
  • Collar Bolt Nuts
    1035 Alloy Steel, Hardness 30HRC

Victaulic Coupling
