TPU Oil Frac Hose

TPU Extruded Through The Weave

Features

• Rapid Deployment and Retrieval

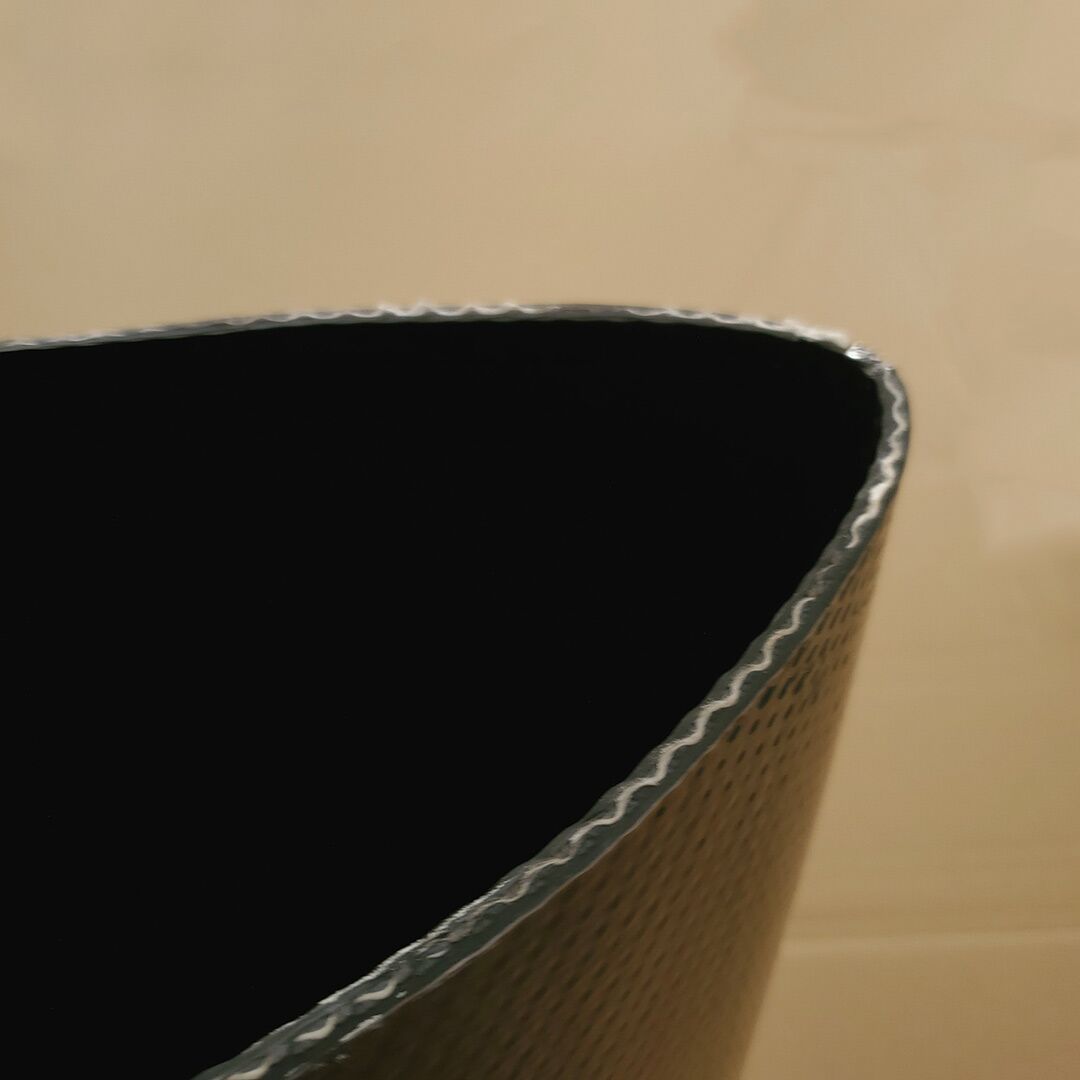

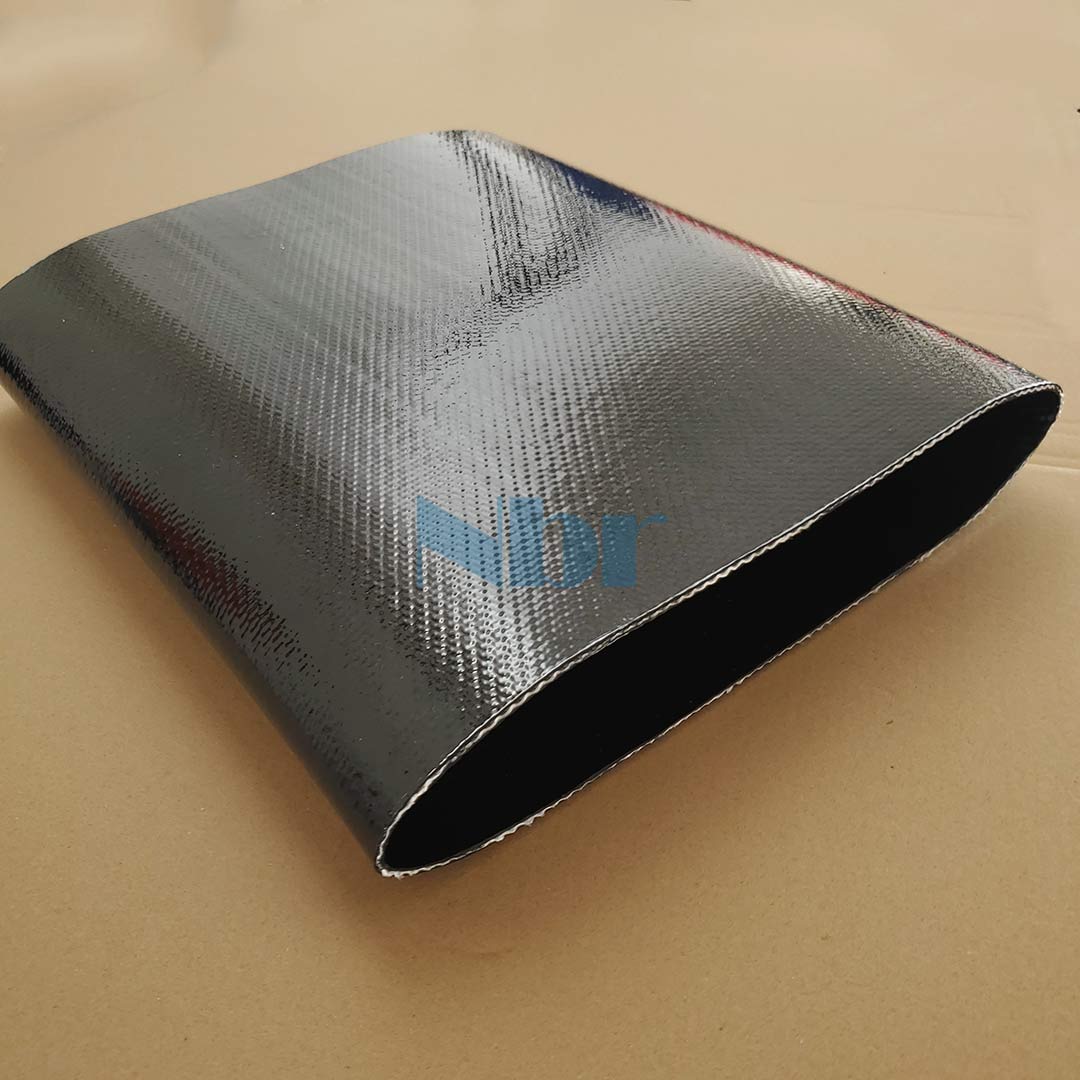

• Thru-the-Weave Extruded Cover and Liner Encapsulating an Inner Woven Reinforcing Jacket
• High Tensile Polyester Inner Woven Jacket
• TPU Thermoplastic Outer Cover Providing Excellent Abrasion, UV, and Mildew Resistance
• TPU Thermoplastic Inner Liner Providing Chemical Resistance (consult ABC chart) and Excellent Abrasion Resistance When Pumping Suspended Solids
• Dimensional Stability: Designed For Low Elongation Rate and Return to Nominal Diameter After Extended Periods of Pressurization
• Working Temperature Range: -58°F to 176°F (-50°C to 80°C)

Standards

• 8″, 10″, 12″ Diameters, >12″ on Request
• Standard Color: Black, Others on Request
• Standard Length: 660′, Others on Request
• Custom Marking and Private Labeling on Request
• Hose Ends: Uncoupled, Anodized Aluminum V-Style Groove Couplings, Others on Request

Specification

Application

• Oil and Gas: Long Distance Fracking Water Transfer
• Industrial Dewatering: Discharge Pumping
• Agricultural: Water Irrigation, Manure Slurry Pumping
• Municipal: Wastewater Bypass
