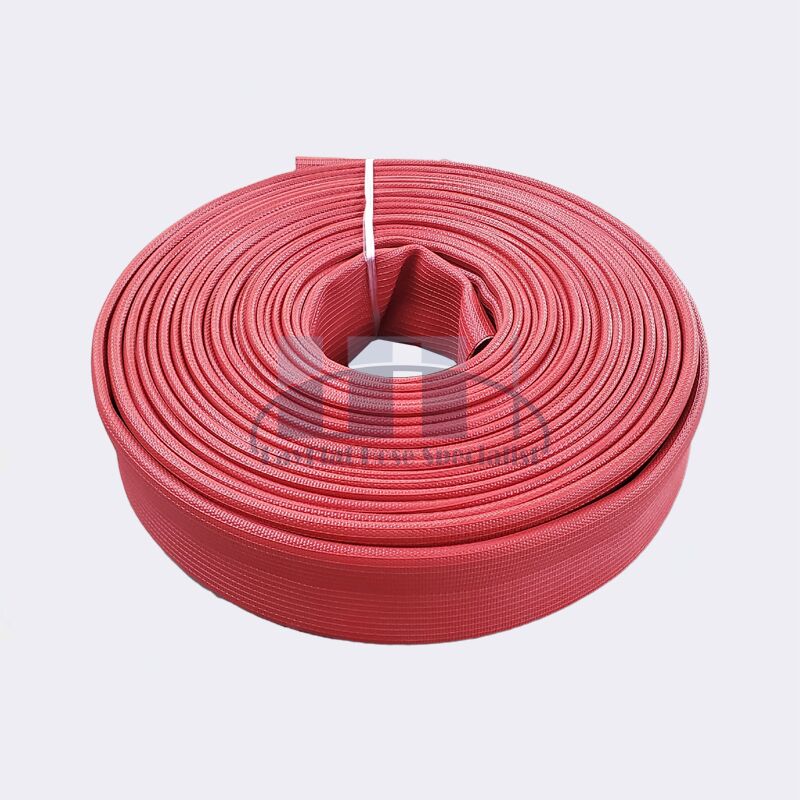

PVC Durable Hose
Category PVC Layflat Hose
Tags PVC Covered hose, PVC durable hose, PVC lay flat hose, PVC lined hose
PVC covered hose/duraline/durable hose
Details about PVC Durable Hose
PVC Durable Hose
![PVC Hose Layout](https://nbrlayflathose.com/wp-content/uploads/2020/09/PVC-Hose-Layout.jpg)
PVC liner and cover.
Features
- An economic choice for dewatering, water delivery, wash down
- Extremely lightweight and compact, easy to handle and maintain
- The excellent adhesion strength and low elongation by extruded-thru-the-weave processing
- Optional ribs along the length improve abrasion resistance on the cover
- Temperature range from -22°F to 158°F (-30°C to 70°C)
- Standard length 50’, 100’, 200’, up to 660’
- Available with customized color, marking, couplings
Standard
- Within ISO-9001 quality management system
Specification
Nominal Size |
Working Pressure | Min. Burst Pressure | Average Weight |
Wall thickness |
|||||
inch |
mm | psi | bar | psi | bar | Lbs./ft. | Kg/m | inch | mm |
1″ | 25 | 150, 200, 250 | 10, 14, 17 | 450, 600, 750 | 30, 42, 51 | 0.161 | 0.24 | 0.005 |
1.60 |
1-1/2″ |
38 | 150, 200, 250 | 10, 14, 17 | 450, 600, 750 | 30, 42, 51 | 0.242 | 0.36 | 0.007 | 2.10 |
1-3/4″ | 45 | 150, 200, 250 | 10, 14, 17 | 450, 600, 750 | 30, 42, 51 | 0.269 | 0.40 | 0.005 |
1.60 |
2″ |
52 | 150, 200, 250 | 10, 14, 17 | 450, 600, 750 | 30, 42, 51 | 0.336 | 0.50 | 0.007 | 2.00 |
2-1/2″ | 65 | 150, 200, 250 | 10, 14, 17 | 450, 600, 750 | 30, 42, 51 | 0.437 | 0.65 | 0.007 |
2.20 |
3″ |
75 | 200 | 14 | 600 | 42 | 0.598 | 0.89 | 0.007 | 2.20 |
4″ | 102 | 150 | 10 | 450 | 30 | 0.706 | 1.05 | 0.008 |
2.30 |
5″ |
127 | 150 | 10 | 450 | 30 | 0.827 | 1.23 | 0.009 | 2.60 |
6″ | 152 | 150 | 10 | 450 | 30 | 1.008 | 1.50 | 0.010 |
2.90 |
* Other diameter or pressure on request
