NBR Irrigation Hose
Details about NBR Irrigation Hose

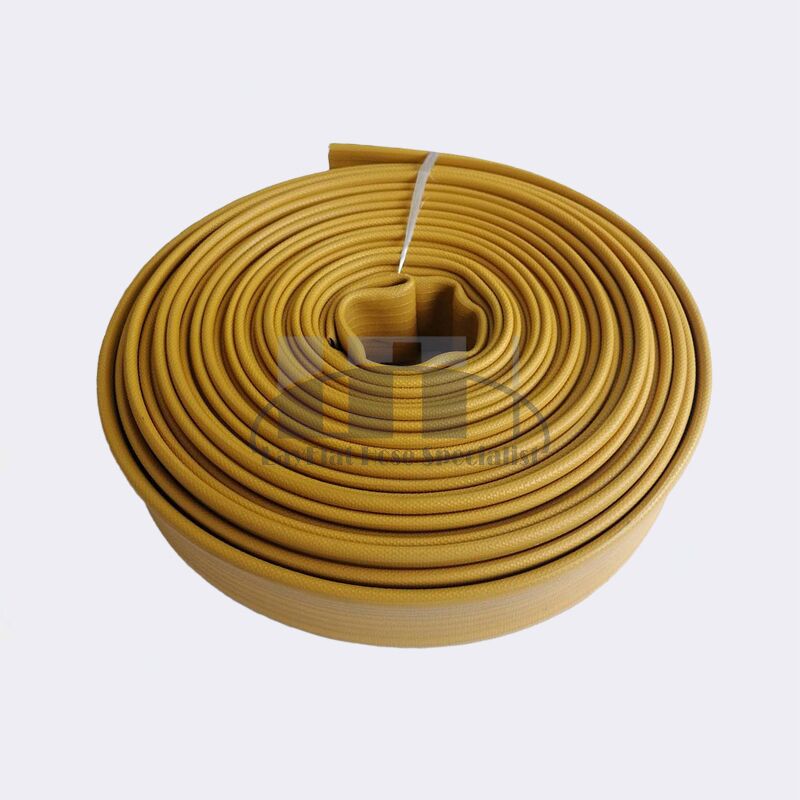

NBR Irrigation Hose
Nitrile Rubber as Cover & Liner
1.Features
- Excellent resistance to weather, UV, and Ozone
- Superior abrasion resistance, suitable for all ground conditions
- Excellent resistance to agricultural chemicals and fertilizers
- Minimum pressure loss, very low elongation
- Supreme adhesion resistance
- Easy maintenance and handling
- Temperature range from -58°F to 158°F (-40°C to 70°C)
2.Specification
|
Nominal Size |
Working Pressure | Burst Pressure | Weight | Wall Thickness | Tensile Strength | Bend Radius | |
| inch | mm | bar | bar | g/m | mm | Kg |
mm |
|
3/4″ |
19 | 21 | 63 | 180 | 2.2 | 1500 | 650 |
| 1″ | 25 | 21 | 63 | 200 | 2.5 | 1875 |
900 |
|
1-1/2″ |
38 | 17 | 51 | 370 | 2.2 | 2250 | 700 |
| 1-3/4″ | 45 | 17 | 51 | 390 | 2.5 | 3000 |
900 |
|
2″ |
52 | 17 | 51 | 400 | 2.6 | 3250 | 1100 |
| 2-1/2″ | 65 | 17 | 51 | 655 | 2.7 | 3500 |
1300 |
|
3″ |
75 | 14 | 42 | 660 | 2.7 | 4500 | 1450 |
| 3-1/2″ | 90 | 10 | 30 | 860 | 2.7 | 5250 |
1480 |
|
4″ |
102 | 10 | 30 | 980 | 2.8 | 6000 | 1700 |
| 5″ | 125 | 10 | 30 | 1300 | 3.0 | 10500 |
2100 |
|
6″ |
152 | 10 | 30 | 1650 | 3.2 | 12500 | 2250 |
| 8″ | 200 | 10 | 30 | 2850 | 3.4 | 16500 |
3000 |
NBR Irrigation Hose
